Property Types in Capex Strategy

This guide provides an overview of the different property types available in Weissr Capex Strategy and how they appear in forms. Use it to understand how each type works, what kind of data it supports, and how users interact with it.



Property types and their control types

This table outlines the available property types, how they appear in forms, and key behavior notes for each.

Property Type

Control Type

Example

Comment

Boolean

Checkbox

Yes/No

Simple true/false or yes/no selection.

Code

Drop-down

List of options

Only one option can be selected from the list.

Date

Date-picker

2022-03-30, March 2022 or 2022

Supports daily, monthly or yearly resolution. Depends on server settings for dates.

Decimal

Textbox

0.456 0R 45.6%

To display as a percentage, the percentage checkbox must be selected.

Integer

Textbox

432 or -432

Supports positive and negative integers.

String (multiline)

Textbox responsive.
Rich text compatible

This can be a long story…

Supports up to ~32,000 characters, with rich text formatting available.

String (single line)

Textbox

Supports up to 128 characters.

User

Drop-down

John Doe

Available users defined by user groups

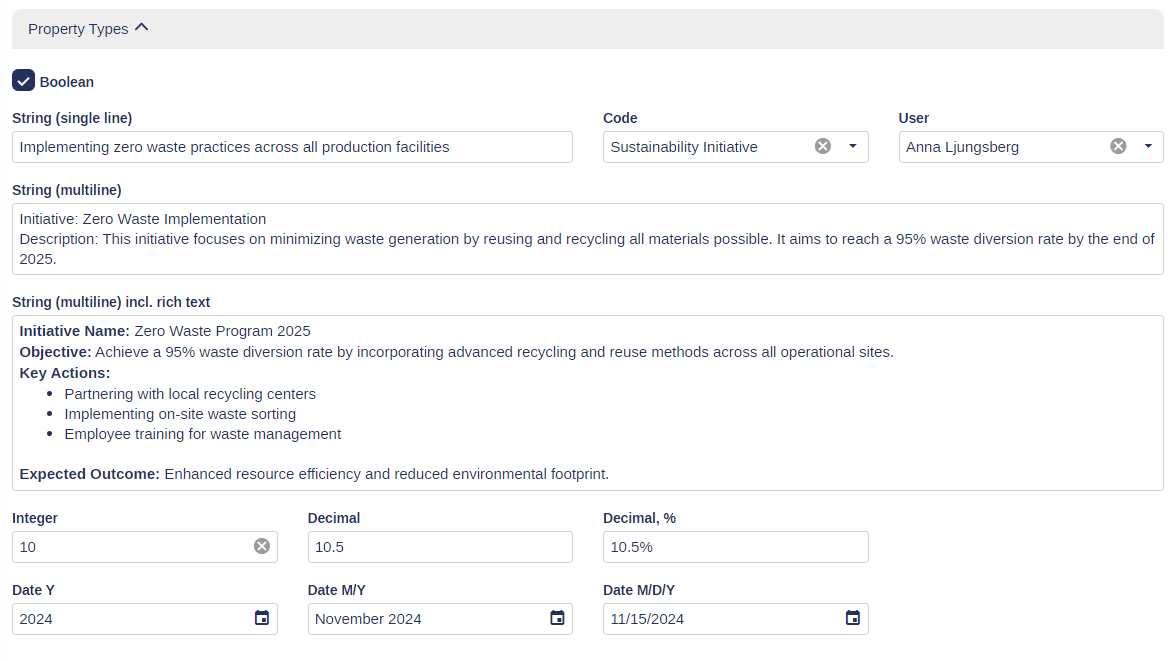

Appearance in forms

Here’s how each property type appears when used in a form:
